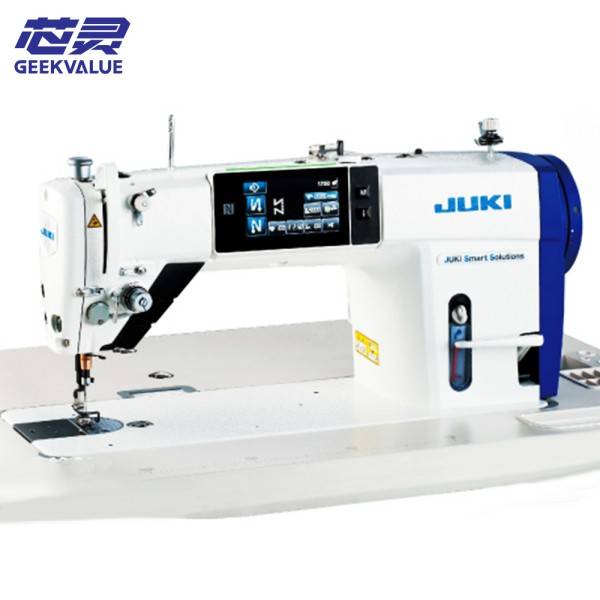

JUKI DLM-5200N is an industrial direct-drive automatic thread trimmer sewing machine with the following advantages and specifications:

Advantages:

Direct drive motor: Direct drive technology is used to reduce mechanical transmission loss and improve efficiency.

Automatic thread trimming: Built-in automatic thread trimming function reduces manual operation and improves efficiency.

High-speed sewing: The maximum speed can reach 5000 rpm, which is suitable for mass production.

Low noise design: Low noise during operation, improving the working environment.

Easy to operate: Equipped with a user-friendly operation panel, easy to set up and adjust.

Strong durability: High-quality materials are used to ensure long-term stable operation.

Energy saving and environmental protection: Direct drive motor reduces energy consumption and meets environmental protection requirements.

Specifications:

Model: DLM-5200N

Sewing type: flat stitch

Maximum sewing speed: 5000 rpm

Stitch length: maximum 5mm

Presser foot lift: manual lift 13mm, knee lift maximum 16mm

Motor: direct drive servo motor

Thread trimming method: automatic thread trimming

Needle bar stroke: 30.5mm

Needle used: DP×5 14#-21#

Hook used: automatic lubrication hook

Oil volume: 80ml

Weight: about 29kg

Summary:

JUKI DLM-5200N is an ideal choice for industrial sewing with its high efficiency, durability and easy operation, especially for production environments that require high output and high quality. Its automatic thread trimming function and high-speed sewing capacity significantly improve production efficiency, while its low noise and energy-saving design also improve the working environment and reduce operating costs.
